105 KW / 261 KWh BESS

SafetY
  • Three-level architecture BMS
  • Cell-level data detection and management
  • 6-level electrical protection
  • Comprehensive fire protection system
  • CE certification
Intelligent
  • Cloud platform + mobile app
  • Active balancing
ECONOMICAL AND EFFICIENT
  • Intelligent liquid cooling temperature control system
  • Temperature difference between batteries below 5°C, extending system cycle life
  • Lower auxiliary power consumption
  • Lower electricity costs, higher resource utilization efficiency
  • Plug-and-play
Flexible Application
  • Compatible with different European market grid connection standards
  • Smaller footprint
  • Flexible capacity configuration

General product description

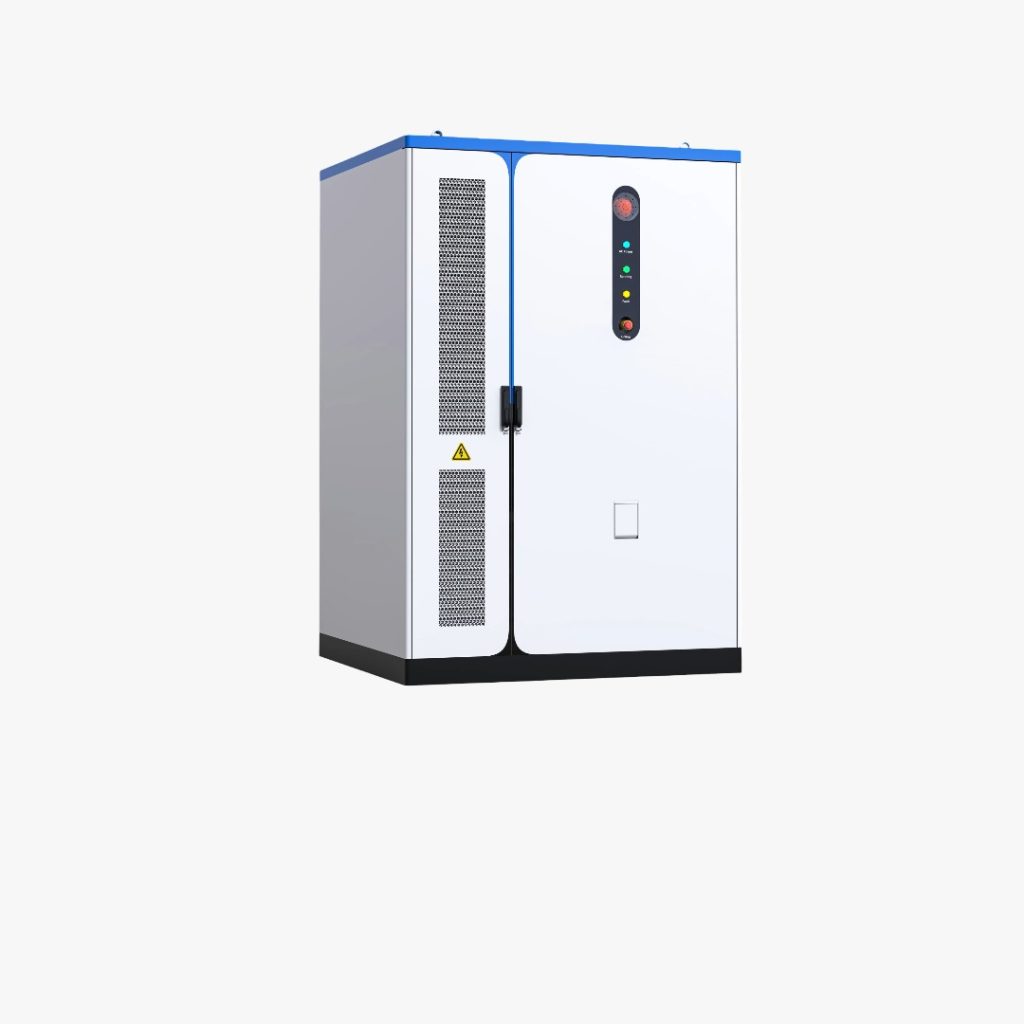

105 KW / 261 KWh Liquid-cooling BESS
Dyna Pod B261 - Lithium Iron Phosphate Battery System
NO. Item Specification
1 Configuration 1P52S*5
2 Rated energy 261 KWh
DC side
3 Rated voltage 832V DC
4 Voltage scope 702–936V DC
AC side
5 Voltage scope 400V AC
6 Grid frequency 50/60Hz
7 Rated current 152A
8 Rated charging power 105KW
9 Rated discharging power 105KW
System Parameters
10 Wiring method 3P+N+PE (N reservation)
11 Environment Conditions Storage temperature: -35℃ ~ +50℃
Work temperature: -30℃ ~ +50℃
(>45℃ derating to use)
Application: ≤4000m (≥2000m derating to use)
12 Basical parameter Dimension: 1450*2150*1300 mm
Color: RAL 9003
Weight: 2650kg
IP level: IP55
Anti-corrosion grade: C4 (Up to C5)
Cooling method: Liquid cooling
Communication protocol:
PCS: CAN / RS485 / Ethernet
EMS: Ethernet
Coolant: 50% Glycol and water liquid

Other Models You May Be Interested In

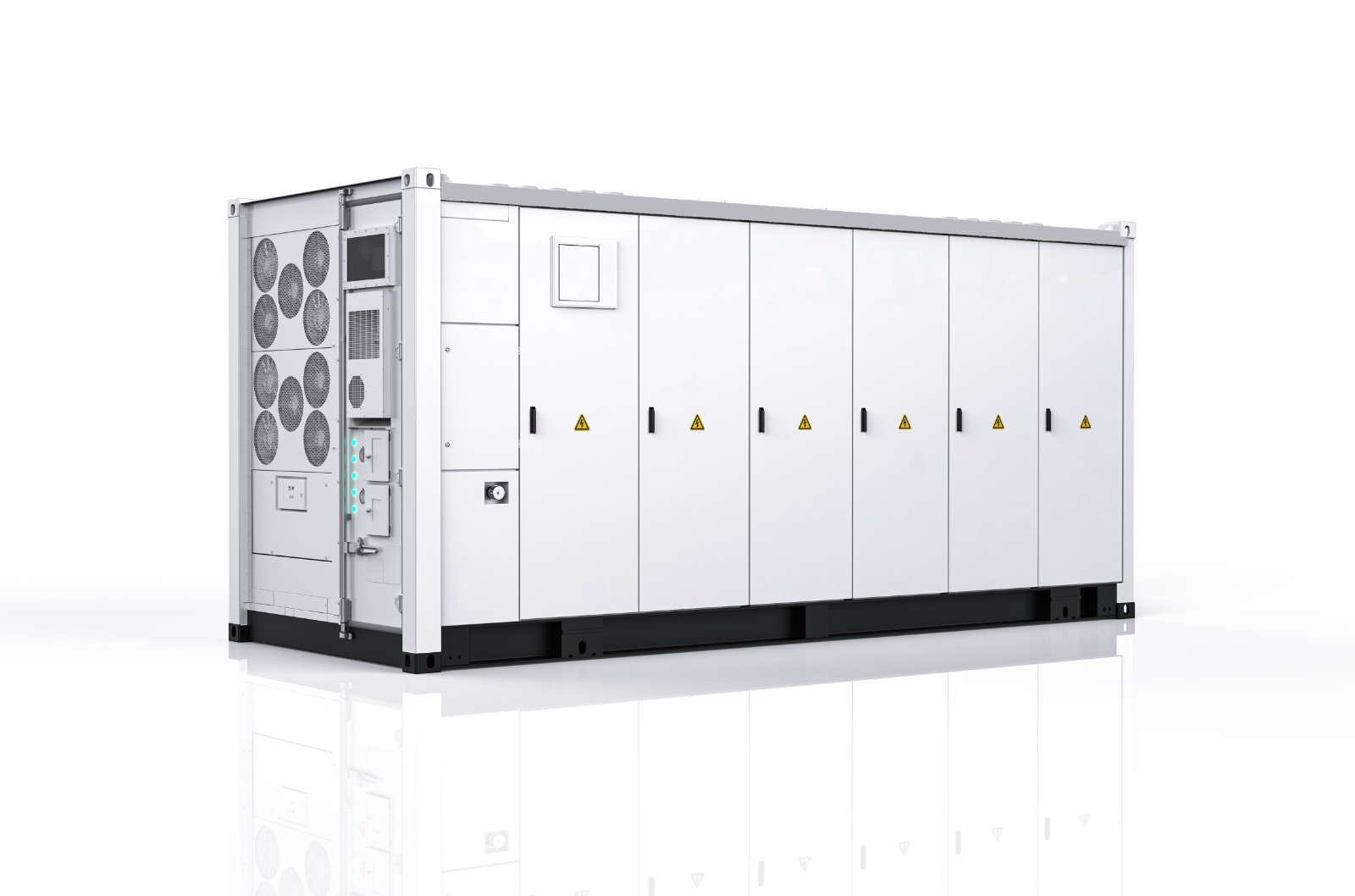

1 MW / 2.612 MWh BESS
