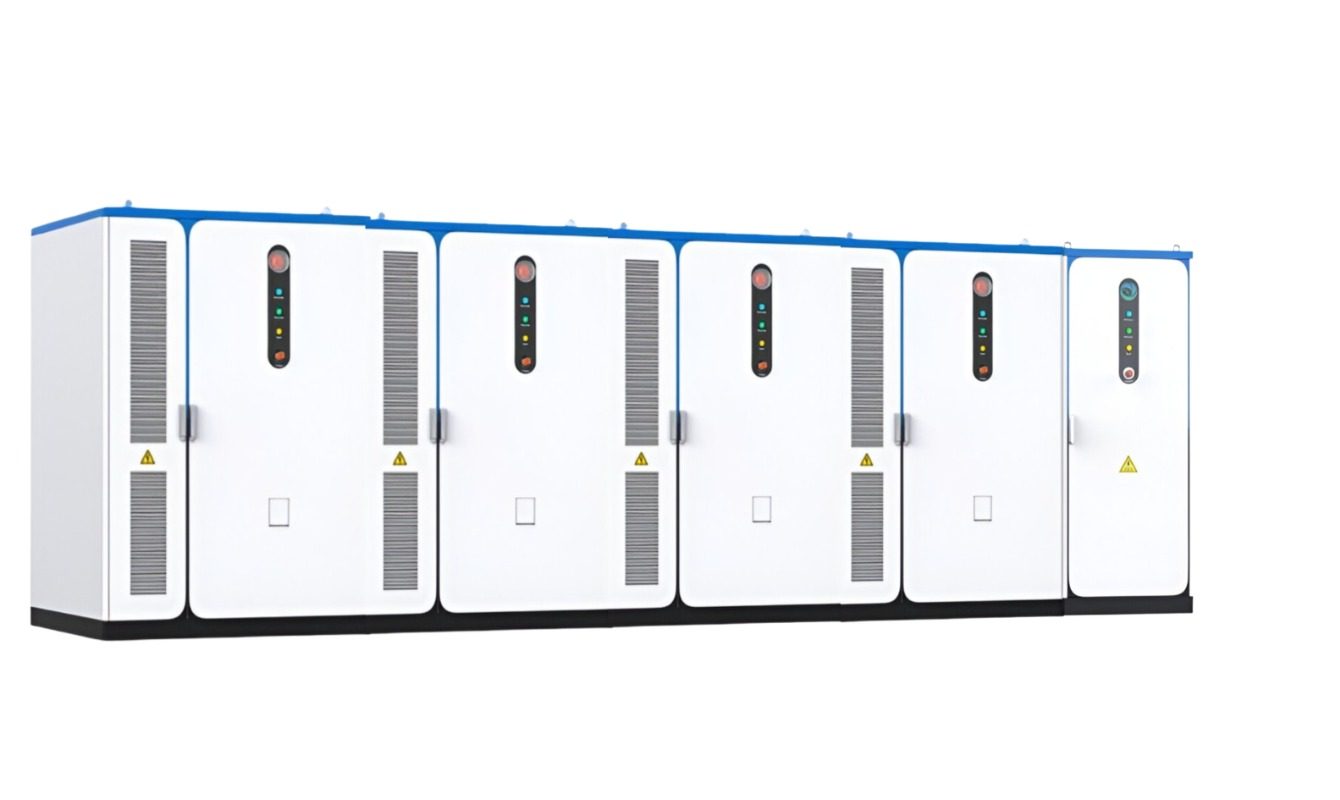

1 MW / 2.612 MWh BESS

Safety
  • 1h fire resistance
  • 3-level BMS architecture
  • Holistic Cell Data Management
  • 6-level electrical production
  • String PCS limits fault current.
  • Comprehensive fire protection system
  • CE marked
Smart
  • Cloud plus Mobile App
  • Active balancing
  • OTA upgrade
Economical and Efficient
  • Intelligent liquid cooled temperature control Dyna Pod C2612
  • Uniform cell temperature (<5 °C difference) extends system life.
  • Low auxiliary consumption
  • OSS system to make the O&M easier and more visible
  • Plug and Play
Versatile
  • Compatible with different European market grid connection standards
  • Less space occupancy
  • Flexible and configurable

General product description

6 Grid Frequency 50/60Hz
Industrial and Commercial Storage 2612 KWh System
Lithium Iron Phosphate Battery System
NO. Items Specifications
1 Configuration 10* (1P52S*5)
2 Rated Power 2.612MWh
DC Side
3 Rated Voltage 832V DC
4 Voltage Range 702–936V DC
AC Side
5 Rated Voltage 400V AC
7 Rated Current 1520A
8 Rated Charging 1.05MW
9 Rated Discharge 1.05MW
Container Parameters
10 Interface Configuration 3P+N+PE (N is reserved)
11 Environmental Conditions Storage: -35℃ ~ +50℃
Operating:-30℃ ~ +50℃ (Derated use above)
Application altitude : -≤5000m( Derated above 2000m)
12 Basic parameters Color: RAL9003
Weight: ≈27t
IP grade:IP55
Anticorrosion rating: C4(C5: optional)
Cooling method: Liquid cooling
Communication protocol: PCS: CAN/RS485/Ethernet EMS: Ethernet
Coolant: 50% Glycol solution

Other Models You May Be Interested In

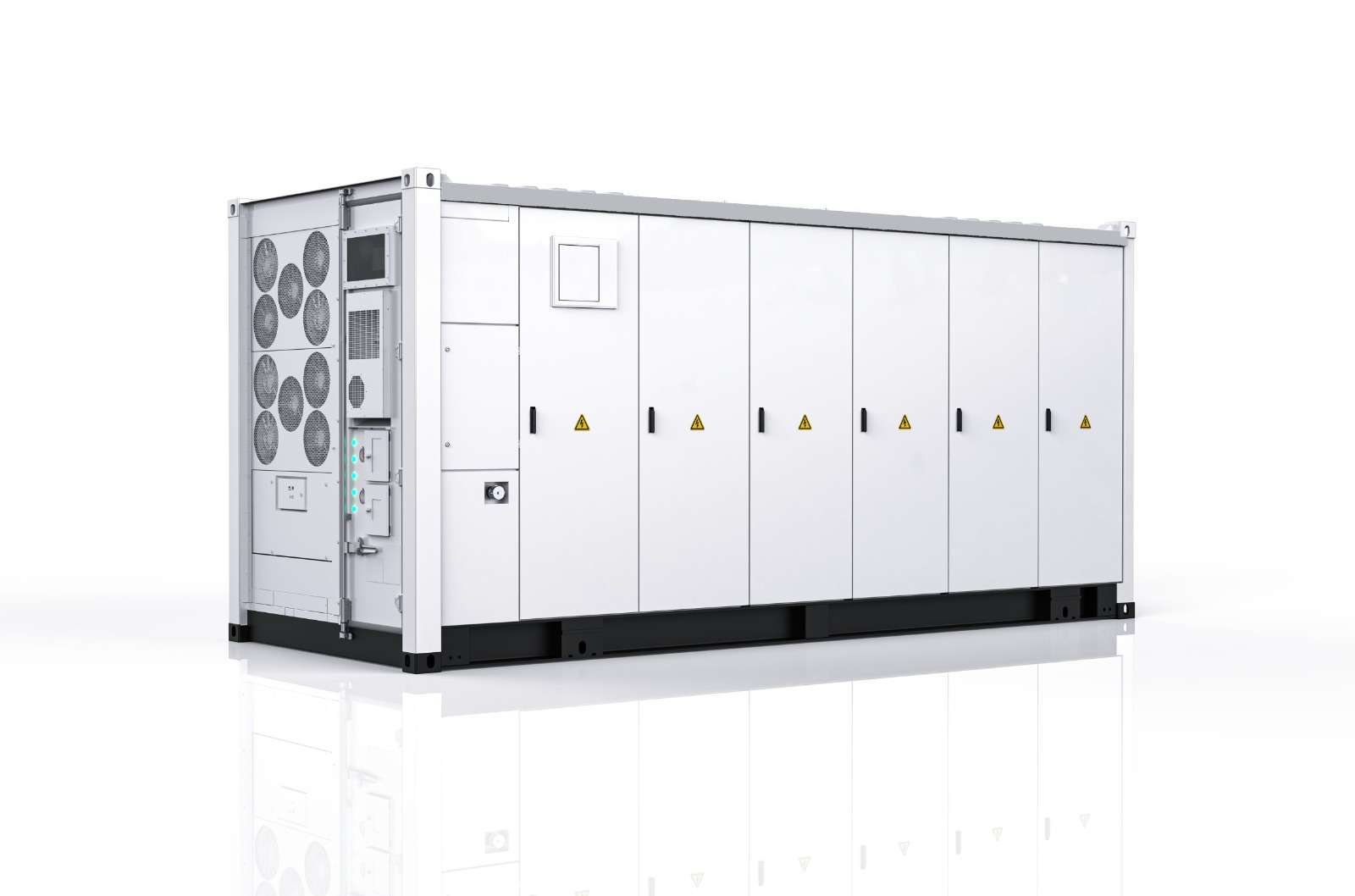

1.25 MW/5.016 MWh BESS

1.25 MW/5.016 MWh Battery Energy Storage System (BESS) designed for reliable peak shaving, load shifting, and renewable integration.

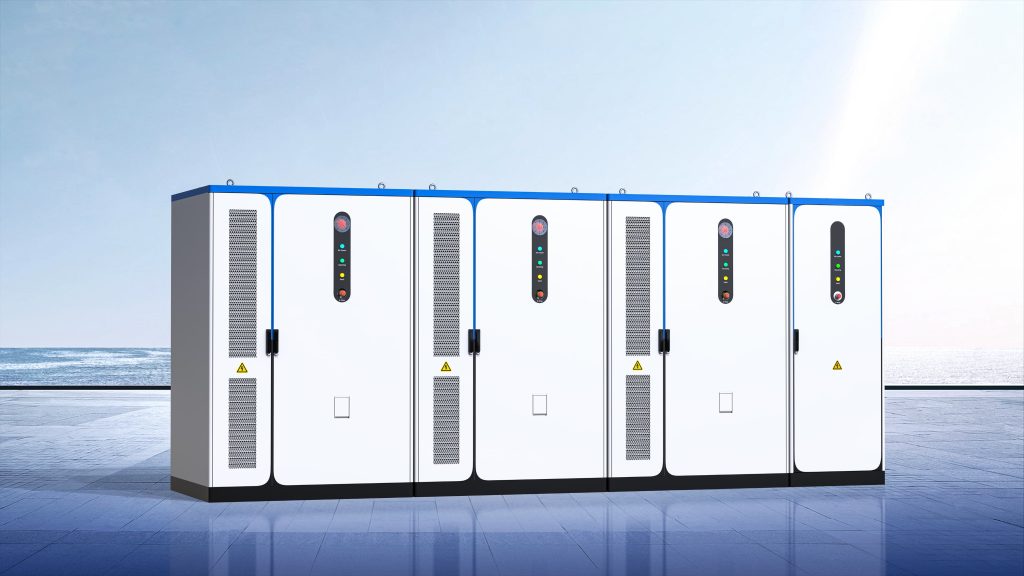

500 KW/1.044 MWh BESS

ideal for medium-scale energy management, backup power, and renewable energy support.

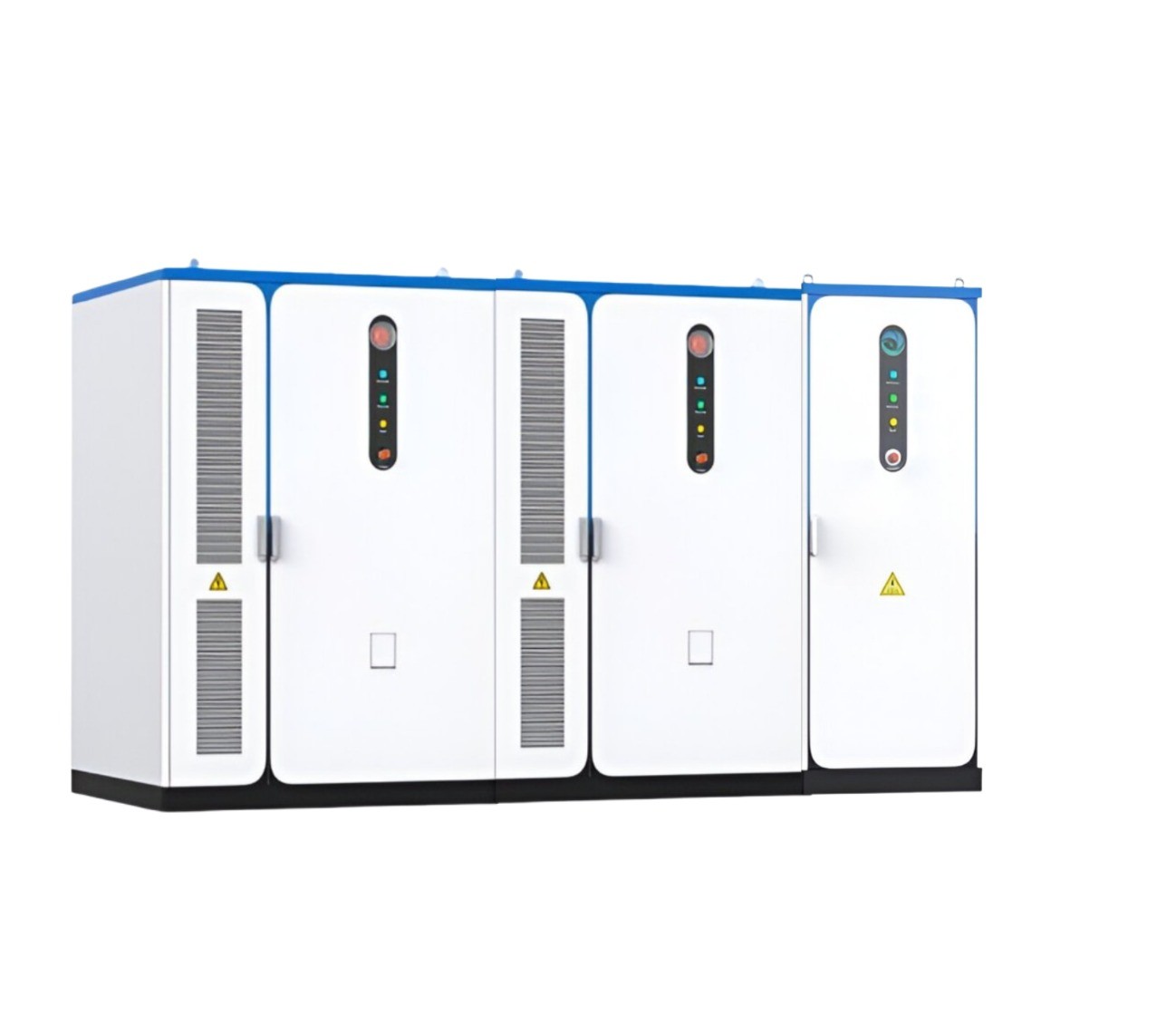

250 KW/522 KWh BESS
